Overhead hanger and Wall Bracket KTA
Description

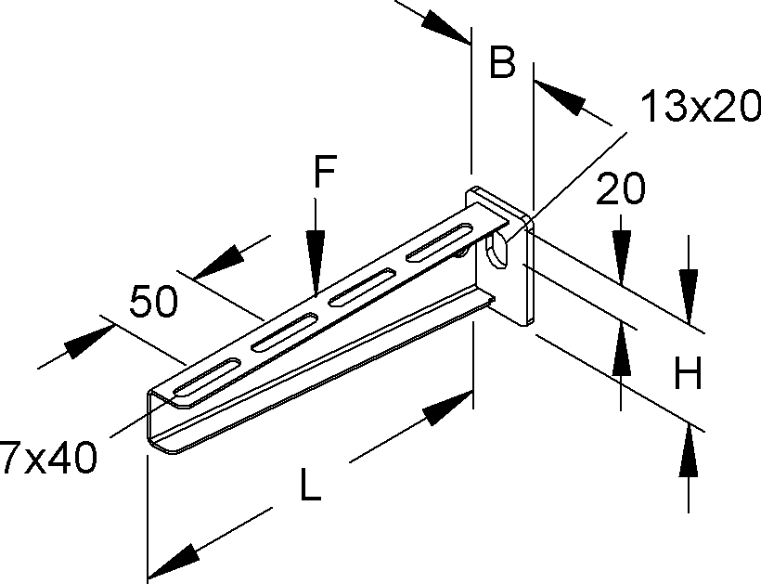

Overhead hanger- and wall bracket, standard, lengths ranging from 110 to 610mm, 2,5 kN, steel, hot dip galvanised DIN EN ISO 1461, incl. accessories
| Material | Steel |
| Color | None |
Dimensions available:
Refer to the product sheets for more information on product details and compatibility.
| Product | EAN | Height (mm) | Length (mm) | Product sheet |
|---|---|---|---|---|
| KTA 100 | 4013339186907 | 45 | 110 | |
| KTA 150 | 4013339187003 | 45 | 160 | |
| KTA 200 | 4013339187102 | 55 | 210 | |
| KTA 250 | 4013339187201 | 55 | 260 | |
| KTA 300 | 4013339187300 | 65 | 310 | |
| KTA 350 | 4013339187409 | 65 | 360 | |
| KTA 400 | 4013339187508 | 75 | 410 | |
| KTA 450 | 4013339187607 | 75 | 460 | |
| KTA 500 | 4013339187706 | 90 | 510 | |
| KTA 550 | 4013339187805 | 90 | 560 | |
| KTA 600 | 4013339187904 | 90 | 610 |
